Maximize productivity without sacrificing quality.
Every Thunder Creek trailer is built to the same rigorous standards. Economy Trailers are no exception. They are built tough so you can travel faster, fuel faster and get more done.
Â
Modular design allows you to add options any time.
Start with a simple fuel trailer now and build it into a shop-on-wheels with service-minded options, including the rear utility box and light tower. If you aren't using DEF yet, but you will someday, you can add the system later. Already own a Multi-Tank Trailer?

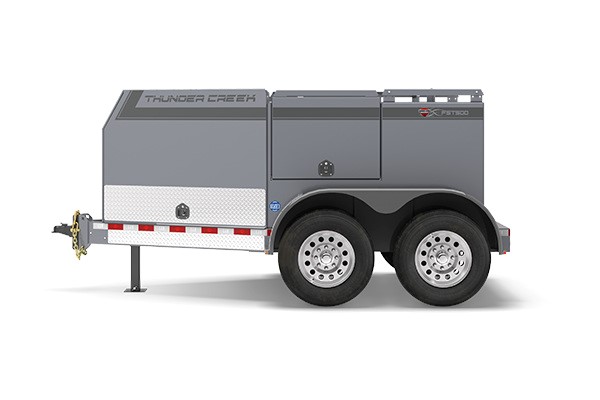

FST Series Fuel Trailers
-
Capacity |
500 gallons |
Tank |
7 gauge steel |
Baffles |
1 full height offset baffle |
Frame |
7.5" interlocking frame |
Axles |
dual 5,000 lbs. torsion |
Hubs |
6 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
13'/7'/6' |
Empty Weight |
3,390 lbs. |
GVWR |
10,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |
-
Capacity |
750 gallons |
Tank |
7 gauge steel |
Baffles |
3 full height offset baffles |
Frame |
7.5" interlocking frame |
Axles |
dual 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
15'/7'/6' |
Empty Weight |
3,830 lbs. |
GVWR |
12,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |
-
Capacity |
990 gallons |
Tank |
7 gauge steel |
Baffles |
4 full height offset baffles |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
17'/7'/6' |
Empty Weight |
4,250 lbs. |
GVWR |
14,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |

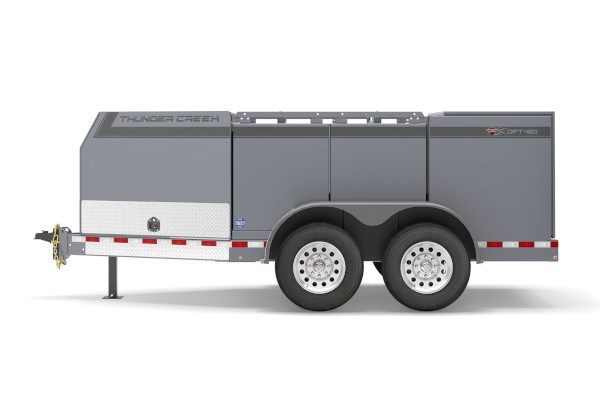

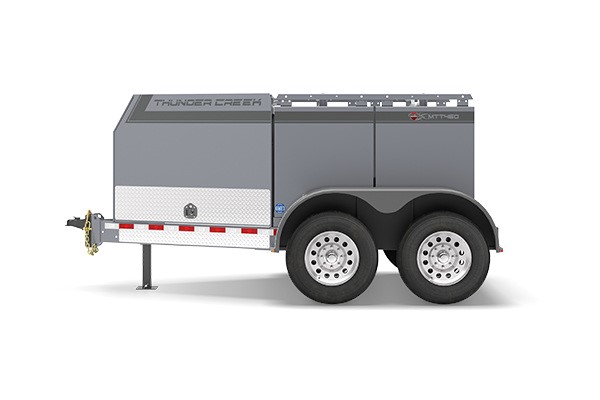

Multi-Tank Fuel Trailers
-
Capacity |
460 gallons |
Tank |
7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 5,000 lbs. torsion |
Hubs |
6 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
13'/7'/6' |
Empty Weight |
3,326 lbs. |
GVWR |
10,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |
-
Capacity |
690 gallons |
Tank |
7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
16'/7'/6' |
Empty Weight |
4,054 lbs. |
GVWR |
12,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |
-
Capacity |
920 gallons |
Tank |
7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
18'/7'/6' |
Empty Weight |
4,682 lbs. |
GVWR |
14,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
UB Weight |
650 lbs. |

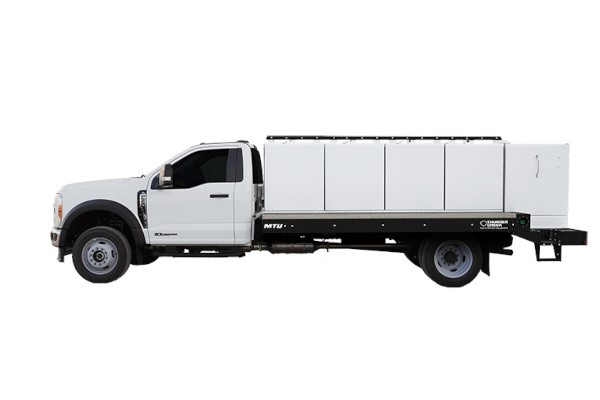

Multi-Tank Truck Upfit
-
Capacity |
920 gallons |
Tank Sizes |
Eight 115-gallon tanks |
Tank Material |
10 gauge mild steel |
GVWR |
19,500 lbs. |

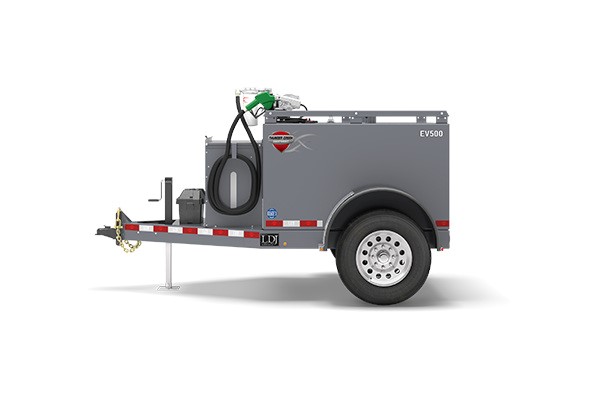

Economy Fuel Trailers
-
Capacity |
500 gallons |
Tank |
7 gauge steel |
Baffles |
one, full-height |
DOT Compliant |
yes |
Axles |
single 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
16" 10-Ply |
L/W/H |
10' / 7' / 6' |
Empty Weight |
1,670 lbs. |
GVWR |
6,000 lbs. |
DEF Available |
50 Gallon System |
-
Capacity |
750 gallons |
Tank |
7 gauge steel |
Baffles |
two, full-height |
DOT Compliant |
yes |
Axles |
dual 5,000 lbs. torsion |
Hubs |
6 bolt |
Brakes |
electric, all axles |
Tires |
16" 10-Ply |
L/W/H |
12' 2" / 7' / 6' |
Empty Weight |
2,040 lbs. |
GVWR |
10,000 lbs. |
DEF Available |
26 or 50 Gallon System |
-
Capacity |
990 gallons |
Tank |
7 gauge steel |
Baffles |
three, full-height |
DOT Compliant |
yes |
Axles |
dual 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
16" 10-Ply |
L/W/H |
14' 6" / 7' / 6' |
Empty Weight |
2,700 lbs. |
GVWR |
12,000 lbs. |
DEF Available |
26 or 50 Gallon System |
Double Wall Trailers
-
Capacity |
990 gallons |
Tank |
10 gauge steel |
Baffles |
4 full height offset baffle |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
19'/7'/6' |
Empty Weight |
4,250 lbs |
GVWR |
14,000 lbs. |
-
Capacity |
990 gallons |
Tank |
10 gauge steel |
Baffles |
4 full height offset baffle |
Frame |
7.5" interlocking frame |
Axles |
triple 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
23'/7'/6' |
Empty Weight |
5,270 lbs. |
GVWR |
18,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
Multi-Tank Oil Trailers
-
Capacity |
460 gallons |
Tank |
25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 5,000 lbs. torsion |
Hubs |
6 bolt |
Brakes |
electric, all axles |
Brakes |
235/80R16 |
L/W/H |
16'4"/7'/6 |
Empty Weight |
3,976 lbs |
GVWR |
10,000 lbs |
UB Size |
41.75"d x 58.75"w x 49.75"h |
-
Capacity |
690 gallons |
Tank |
25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
19'4"/7'/6' |
Empty Weight |
4,704 lbs. |
GVWR |
12,000 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
-
Capacity |
920 gallons |
Tank |
25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
21'4"/7'/6' |
Empty Weight |
5,334 lbs. |
GVWR |
5,334 lbs. |
UB Size |
41.75"d x 58.75"w x 49.75"h |
Service & Lube Trailers
-
Capacity |
460 combined gallons |
Tank Sizes |
Up to ten 25-, 55- or 115-gallons |
Tank Material |
7 or 10 gauge mild or stainless steel |
Frame |
7.5" interlocking frame |
Axles |
dual 6,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
19'4" / 6'9" / 5'9" |
Empty Weight |
7,109 lbs. |
GVWR |
12,000 lbs. |
UB Size |
39.5"d x 58.5"w x 42" |
-
Capacity |
690 combined gallons |
Tank Sizes |
Up to ten 25-, 55- or 115-gallons |
Tank Material |
7 or 10 gauge mild or stainless steel |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
21'4" / 6'9" / 5'9" |
Empty Weight |
8,331 lbs. |
GVWR |
14,000 lbs. |
UB Size |
39.5"d x 58.5"w x 49" |
Split Tank Trailers
-
Capacity |
Dual 495 Gallon Tanks |
Tank |
7 gauge steel |
Baffles |
2 full height offset baffles per tank |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/85R16 |
L/W/H |
18'3"/6'11"/5'8" |
Empty Weight |
5,400 lbs. |
GVWR |
14,000 lbs. |
Bulk Def Trailers
-
Capacity |
990 gallons |
Tank |
7 gauge stainless steel |
Baffles |
5 full height offset baffle |
Frame |
7.5" interlocking frame |
Axles |
dual 7,000 lbs. torsion |
Hubs |
8 bolt |
Brakes |
electric, all axles |
Tires |
235/80R16 |
L/W/H |
14'7"/6'11"/5'8" |
Empty Weight |
3,900 lbs. |
GVWR |
14,000 lbs. |
Def Saddle Tank
-
 |
60 Gallon |
120 Gallon |
DEF Tank |
Stainless Steel |
Stainless Steel |
L/W/H |
40" / 32" / 30" |
60" / 32" / 32" |
Empty Weight |
605 lbs. |
710 lbs. |
Full Weight |
1,145 lbs. |
1,790 lbs. |
